SEAS PRESTAGE シリーズ
(Made in Norway)
アップされている以外のユニットも販売しています。 お問い合わせください。
保証期間 １年間(メーカー規定範囲のみ)
FU10RB-H1600-(4/8ohm) 4" Full Range
The FU10RB is an 4” full range driver offering an extraordinary performance and sound clarity.
New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.
The large, open weave fabric spider reflects very little acoustic energy to the cone, and offers excellent stiffness linearity.
A stiff and stable injection moulded aluminum chassis keeps the critical components in perfect alignment.
The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance.
Small size combined with an excellent performance makes this driver the perfect election for any application where limited space is a critical parameter.
http://www.seas.no/index.php?option=com_content&view=article&id=314&Itemid=270
10cmフルレンジとしては耐入力が大変大きいドライバーです。
販売価格はお問い合わせてください。
4ohm/8 ohm同価格

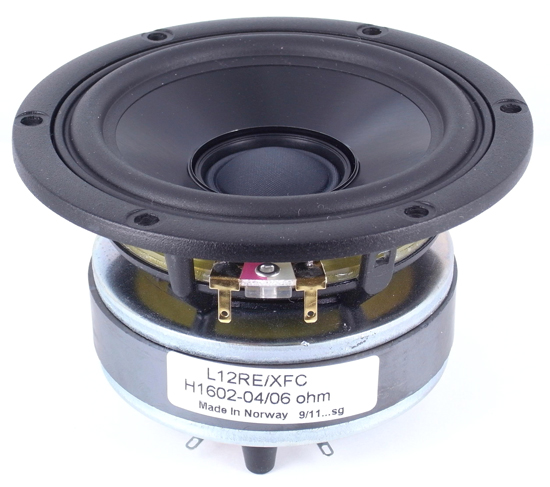

L12RE/XFC (H1602) 5inch Alum/Fabric Coaxial
|
販売価格はお問い合わせてください。
http://www.seas.no/images/stories/prestige/pdfdatasheet/h1602_l12re_xfc_datasheet.pdf
SEASの開発陣がこの同軸ユニットについて、このようなことを記載しています。
聴いていて“息をのむような音（又はハッ!とするような音）、あるいは、鳥肌がたつ! あなたは何らかの経験をするだろう”
SEASが絶賛する同軸小口径ドライバーです。
良くできた同軸ドライバーには間違いないと
思いますが、アルミコーン(黒塗装)とファブリックドームツウイターの素材の違いによる
音質の違いがやはり気になります。
ペーパーコーンと音質比較すれば硬く冷たい音質です。
日本人では使わない素材の組み合わせですね。

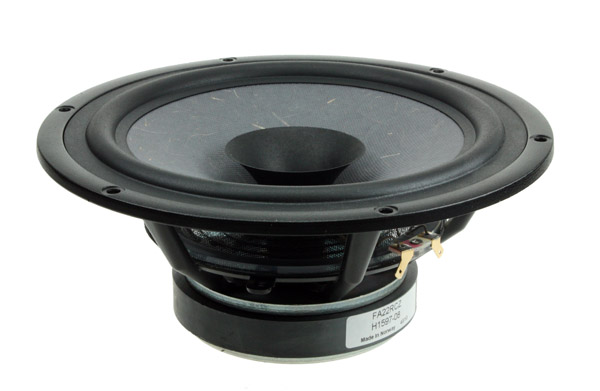

FA22RCZ (H1597-08) 8" Fullrange
販売価格はお問い合わせてください。
https://www.youtube.com/watch?v=6UHujcbuFUM
音質は普通のフルレンジ(スタンダード)です
http://www.seas.no/images/stories/prestige/pdfdatasheet/h1597-08_fa22rcz_datasheet.pdf
http://www.seas.no/images/stories/prestige/pdfdatasheet/h1597-08_fa22rcz_datasheet.pdf
http://www.seas.no/index.php?option=com_content&task=view&id=293&Itemid=255
EXOTICアルニコフルレンジが高額であること、アルニコ独特の広域の伸びと繊細感がない、
こちらのフルレンジの方が価格からすると、とても
バランスの
良い音。
EXOTICアルニコフルレンジよりコストパフォマンスが高い良いフルレンジ。
P18RNX/P (H1350) 7" Poly Cone Woofer
販売価格はお問い合わせてください。
傑作17RCYにかわるユニット
The P18RNX/P is an 18 cm (6.5") cone driver,
developed for use as a long throw high fidelity woofer or woofer/midrange unit.
A polypropylene based cone ensures smooth frequency response and low distortion,
and the adaptive rubber surround provides an ideal match to the cone
over the total frequency range.
The large magnet system gives good transient response,
and the bumped back plate together with the very long,
and light weight copper clad aluminum voice coil allow for extreme coil excursion
with low distortion.
The extremely stiff and stable injection molded metal basket,
keeps the critical components in perfect alignment.
Large windows in the basket both above and below the spider reduce sound reflection,
air flow noise and cavity resonance to a minimum.
Specifications:
Nominal Impedance 8 Ohms
Recommended Frequency Range 40 - 2500 Hz
Short Term Power Handling *250 W
Long Term Power Handling *80 W
Characteristic Sensitivity (2,83V, 1m) 88.0 dB
Voice Coil Diameter 39 mm
Voice Coil Height 18 mm
Air Gap Height 6 mm
Linear Coil Travel (p-p) 12 mm
Maximum Coil Travel (p-p) 22 mm
Magnetic Gap Flux Density 1.0 T
Magnet Weight0.64 kg
Total Weight1.92 kgVoice Coil Resistance 6.1 Ohms
Voice Coil Inductance 1.18 mH
Force Factor 7.6 N/A
Free Air Resonance 44 Hz
Moving Mass 13.1 g
Air Load Mass In IEC Baffle 0.82 g
Suspension Compliance 1.0 mm/N
Suspension Mechanical Resistance 2.53 Ns/m
Effective Piston Area 126 cm2
VAS 21 Litres
QMS 1.52
QES 0.41
QTS 0.32Frame diameter 176mm
Cut out diameter 145.2mm
Depth 78mm

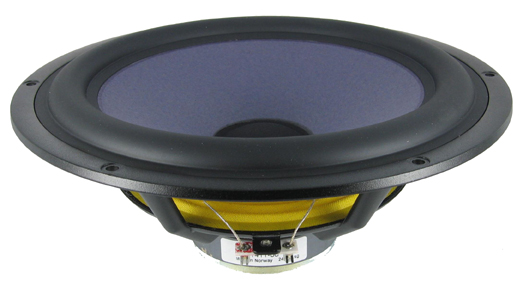

A26RE4 (H1411) 10" Paper Cone
販売価格はお問い合わせてください。
Seas A26RE4 (H1411) Classic 10" Paper Cone Woofer
The A26RE4 is the modern version of the once popular 25F-EW woofer used in the Dynaco A25 system. Seas has stopped using the old 25cm frame and now uses the 26cm frame. This new woofer will not fit in the Dynaco A25 speaker anymore.
This classic paper cone has a wonderful roll off at 2000Hz. This is one of the only 10" drivers we know of that could be used in a 2-way by letting the woofer run full range without a crossover. I have heard this woofer with the Seas H1189 tweeter and it had a magical retro sound to it.
|
§ A classical paper cone and matching natural rubber surround produce a smooth response and reduce potential resonance problems. § A four layer voice coil provides a well behaved roll off characteristic. § The magnet system has a T-shaped cross section of the pole piece for low modulation distortion. § Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
|
U18RNX/P (H1571-08)
6.5" Woofer
販売価格はお問い合わせてください。
スペックは下記をご覧ください。
http://www.seas.no/images/stories/prestige/pdfdatasheet/h1571-08_u18rnx_p_datasheet.pdf
|

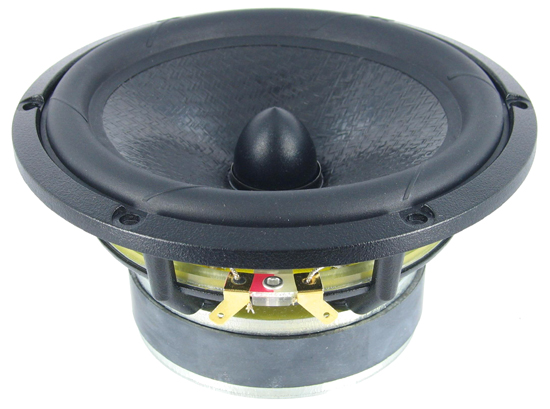

U16RCY/P (H1520-08) 5" Woofer, Woven Poly Cone
New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response. A unique radial reinforced low loss rubber surround reduces radial resonances and prevents surround break up at large excursions. Bullet shaped phase plug reduces compression due to temperature variations in the voice coil, avoids resonance problems which would occur in the volume between the dust cap and the pole piece and increases the long term power handling capacity.
Extremely stiff and stable injection moulded
metal basket, keeps the critical components
in perfect alignment. Large windows in the
basket both above and below the spider
reduce sound reflection, http://www.seas.no/images/stories/prestige/pdfdatasheet/h1520_u16rcy_p_datasheet.pdf |
|

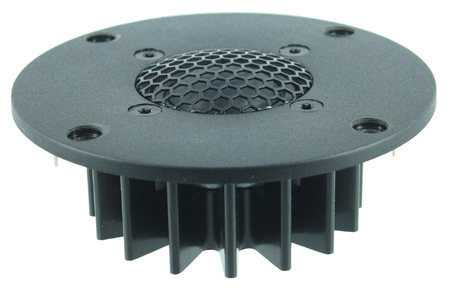

27TDFNC/GW (H1462) 1" Textile Dome Tweeter
販売価格はお問い合わせてください。
T27TDFNC/GW is a High Definition precoated fabric
dome tweeter with a wide, soft
スペックは http://www.seas.no/images/stories/prestige/pdfdatasheet/h1462_27tdfnc_gw_datasheet.pdf |
|

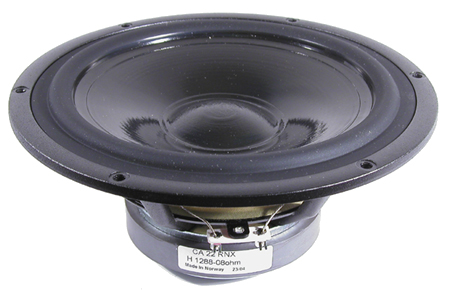

CA22RNX (H1288) 8" Coated Paper Cone
The Seas H1288 - A hand coated paper cone and
matching natural rubber surround produce a well
behaved roll off characteristic and reduce potential
resonance problems. A long voice coil wound on an
aluminum former gives low distortion and high power
handling. The large magnet system provides high
efficiency and good transient response. A bumped
backplate in the magnet system allow maximum
utilization of the long voice coil without
mechanical limitation. Large windows in the basket
both above and below the spider reduce sound
reflections, air flow noise and cavity resonance. スペックは http://www.seas.no/images/stories/prestige/pdfdatasheet/h1288_ca22rnx_datasheet.pdf |
|

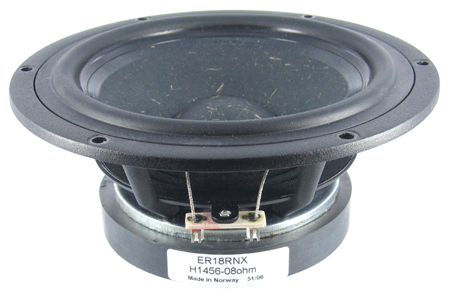

Seas ER18RNX (H1456) 7" Reed Paper Cone Woofer
18cmリードペーパーコーンウーファーユニット
再生周波数：45Hz〜3000Hz |
|

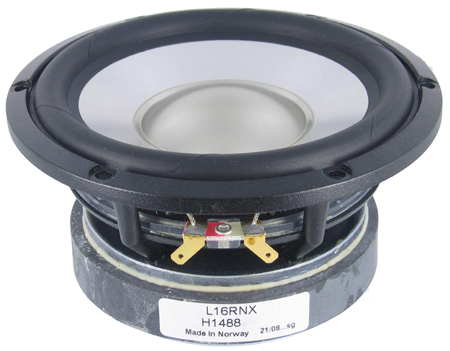

L16RNX (H1488-08)
6" Aluminum Cone Woofer 販売価格はお問い合わせてください。
再生周波数帯域 45〜2000Ｈｚ 感度 85 ｄｂ 重量 1.80ｋｇ
８Ω、４Ωタイプ |
|

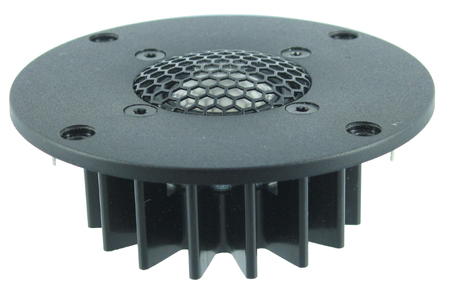

Seas 27TTFNC/GW (H1461) 1" Titanium dome tweeter
販売価格はお問い合わせてください。
|
|

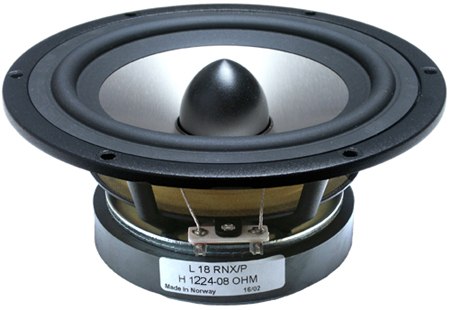

L18RNX/P (H1224) 7" Aluminum Cone
販売価格はお問い合わせてください。
Outside diameter 176mm |
その他の
SEAS PRESTAGE シリーズ価格
|
CA26RE4X (H1316) CA18RNX (H1215) CA15RLY (H1216) CA12RCY (H1152) CA26RFX (H1305) ER15RLY(H1455) L16RN-SL (H1480) L16RNX-SL (H1488-04) L26RFX/P (H1209) |
各品番とも 販売価格はお問い合わせてください。 |
