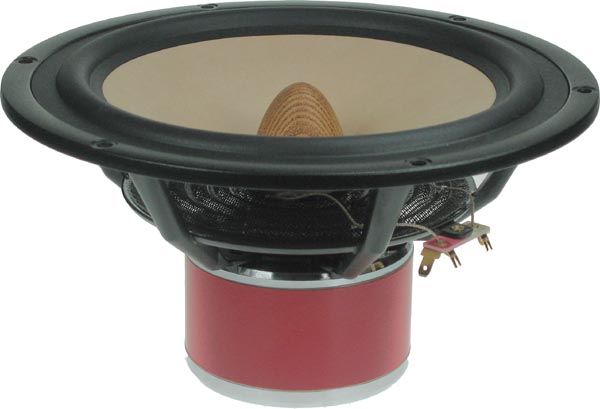

X2-08 EXOTIC W8
22cm Papyrus Cone Alnico Woofer
with 39mm Voice Coil
The Exotic W8 is an 8 inch woofer-midrange driver designed
for smooth, wide frequency response, high sensitivity and
low distortion.
The special paper cone is embedded with papyrus fibres to
optimize stiffness and damping.
A special foam rubber surround reduces mass by 40% compared
to conventional rubber surrounds, resulting in higher
sensitivity and excellent damping properties. Unlike most
plastic foam materials, this material is stable and will
offer decades of trouble-free operation.
A new and proprietary spider design dramatically improves
the performance of this critical suspension part. By
combining an extremely open weave with a new resin
formulation, all noises normally generated by the friction
of the threads rubbing together are virtually eliminated.
Additionally, the open weave is highly acoustically
transparent, minimizing the reflections and resonances
associated with conventional spider designs.
A high temperature copper voice coil is wound on a rigid,
non-conductive glass fibre former.
High quality H2 lead-out wires eliminate noise due to roping
and resonances.
The magnet system uses an Alnico V ring magnet for high
sensitivity and excellent stability.
Massive copper rings above and below the magnet gap lower
distortion due to eddy currents and flux modulation. A
hand-turned phase plug made from ash offers optimal
radiation conditions for the critical mid frequency band.
A stiff and stable injection moulded zinc basket keeps the
critical components in perfect alignment. Generous windows
both above and below the spider reduce sound reflection, air
flow noise and cavity resonances to a minimum.
詳しいスペックは下記をご覧ください。
http://www.seas.no/images/stories/exotic/pdf_datasheet/x2-08_exotic-w8.pdf
