SB Acoustics
アップされている以外のユニットも販売しています。 お問い合わせください。
保証期間 1年間(メーカー規定範囲のみ)
SB Acoustics ペーパーコーン振動板(ハピルス含有)全てに言えることですが、やわらかく耳触りが良い(ScanSpeak Revelator類似、音の賓はScanSpeakが上)のですが情報量は少なめです。
やはり価格相応と思います。(Satoriは除く)

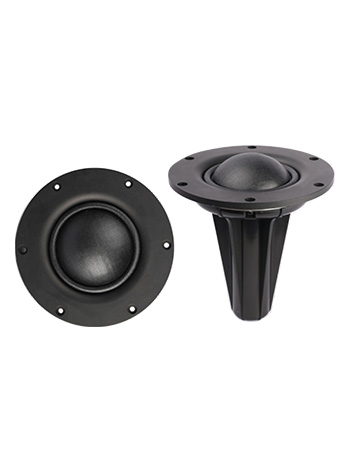

https://sbacoustics.com/product/2-5in-satori-md60n-6-fabric/
販売価格はお問い合わせください。

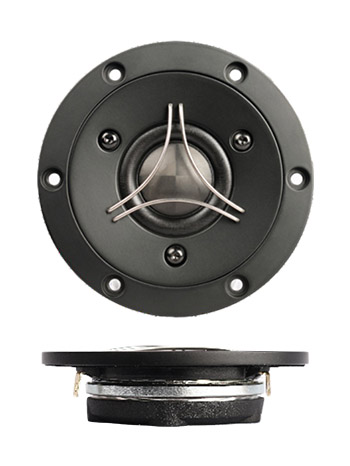

https://sbacoustics.com/product/satori-tw29txn-b-textreme/
販売価格はお問い合わせください。

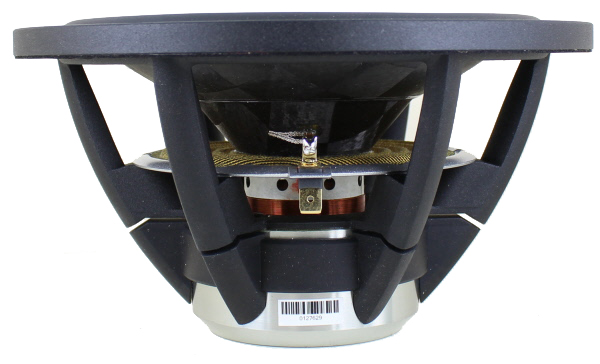

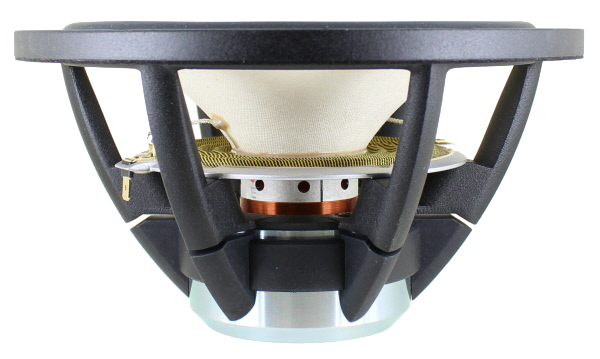

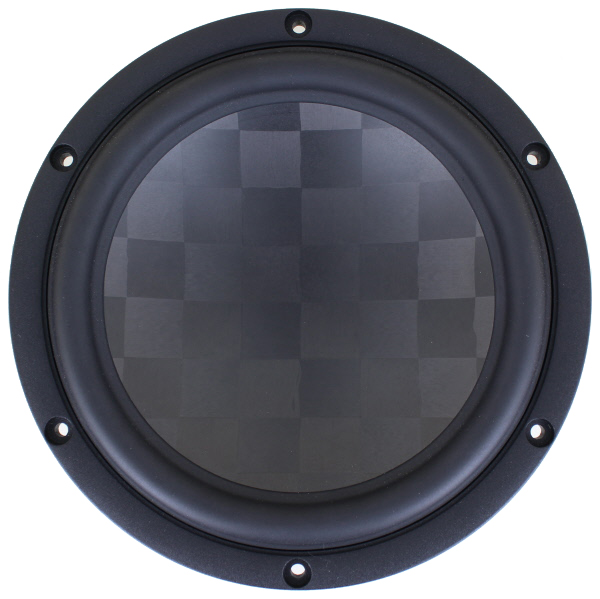

https://sbacoustics.com/product/7%c2%bd-satori-mw19tx-8-textreme/
https://sbacoustics.com/product/7%c2%bd-satori-mw19tx-4-textreme/
販売価格はお問い合わせください。

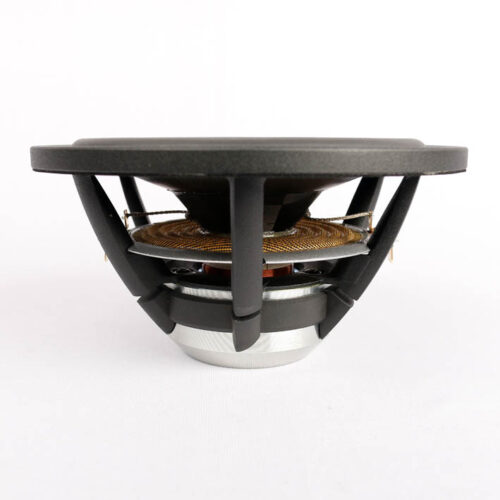

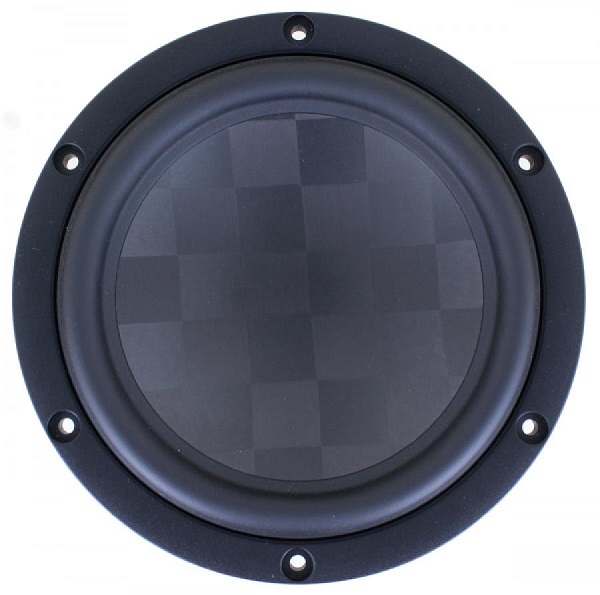

SATORI 6インチ
MW16TX-8 TeXtreme Cone Woofer (8 ohm,4ohm)
https://sbacoustics.com/product/6-5-satori-mw16tx-4-textreme/
販売価格はお問い合わせください。

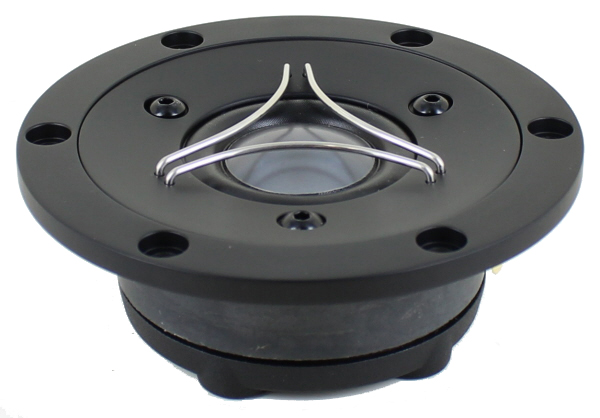

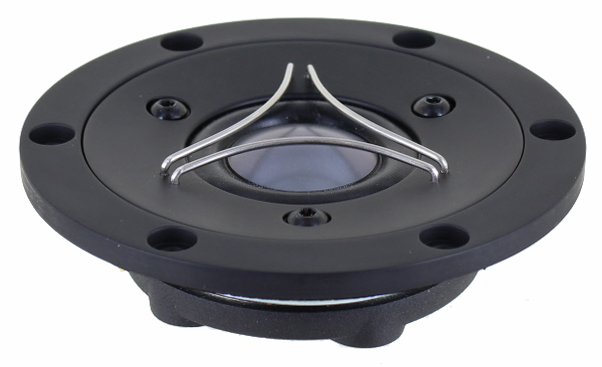

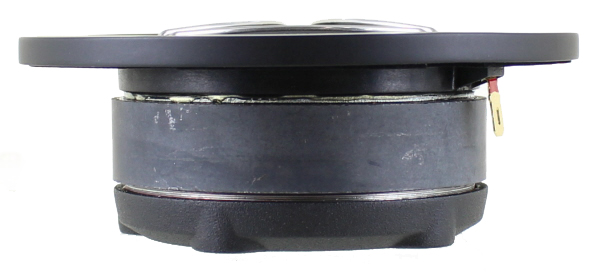

Satori TW29B-B
Beryllium Dome Tweeter(フェライトタイプ)
http://www.sbacoustics.com/index.php/products/tweeters/dome/satori-tw29b-b/
販売価格はお問い合わせください。

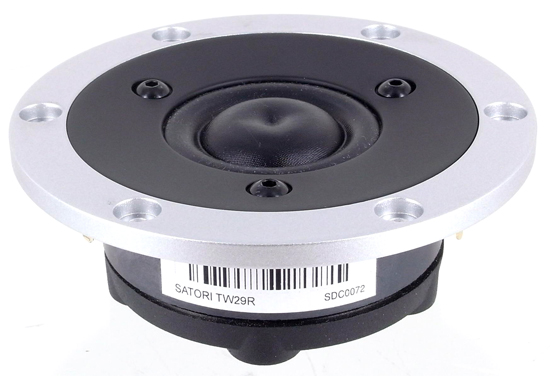

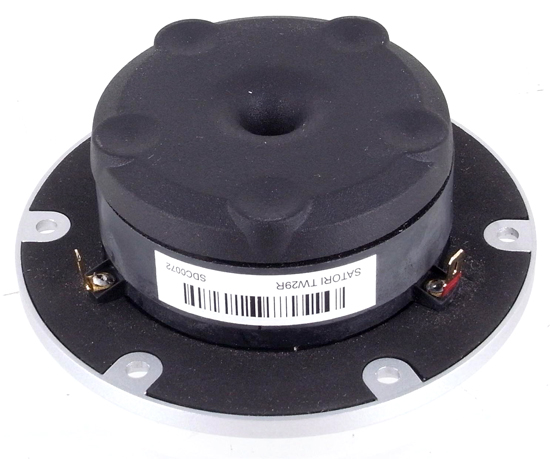

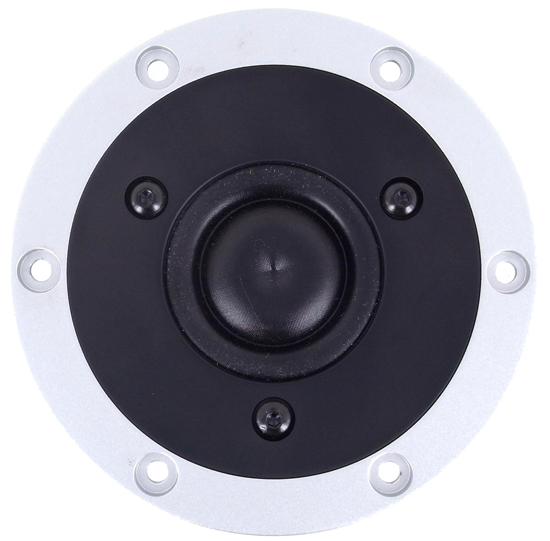

Satori TW29R Ring Dome Tweeter

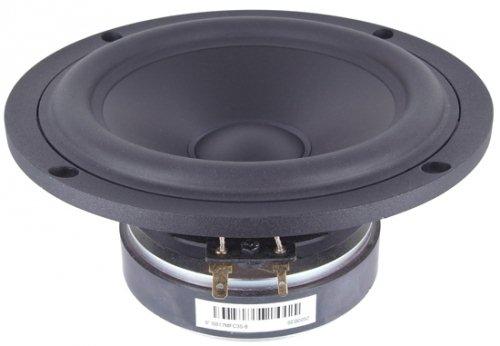

SB17MFC35-8 6" Polypropylene Cone Woofer - 8 ohm
|
販売価格はお問い合わせください。

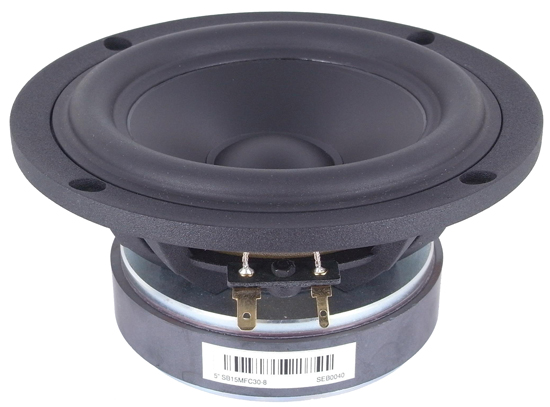

SB15MFC30-8 5" Polypropylene Cone Woofer - 8 ohm
|
販売価格はお問い合わせください。

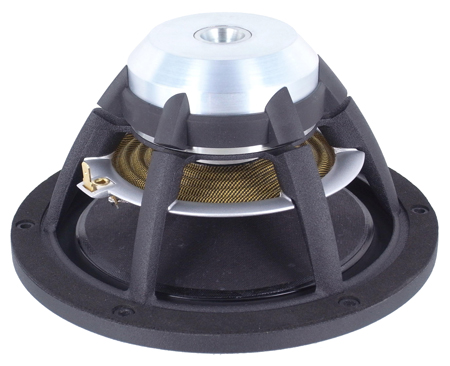

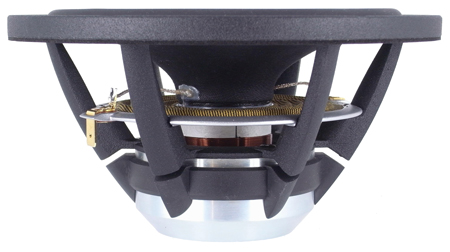

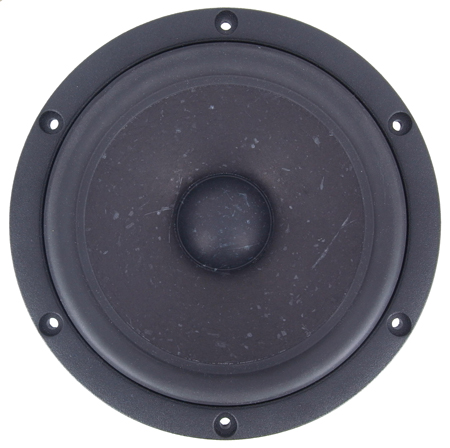

SatoriMW16P Woofer
Satori drivers are designed for subtlety and realism.
http://www.sbacoustics.com/index.php/products/midwoofers/6-1-2-satori-mw16r/

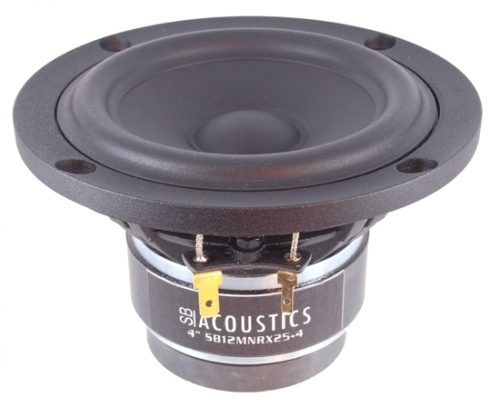

SB12MNRX25-04
http://www.sbacoustics.com/index.php/products/midrange-drivers1/midrange-drivers/
販売価格はお問い合わせください。

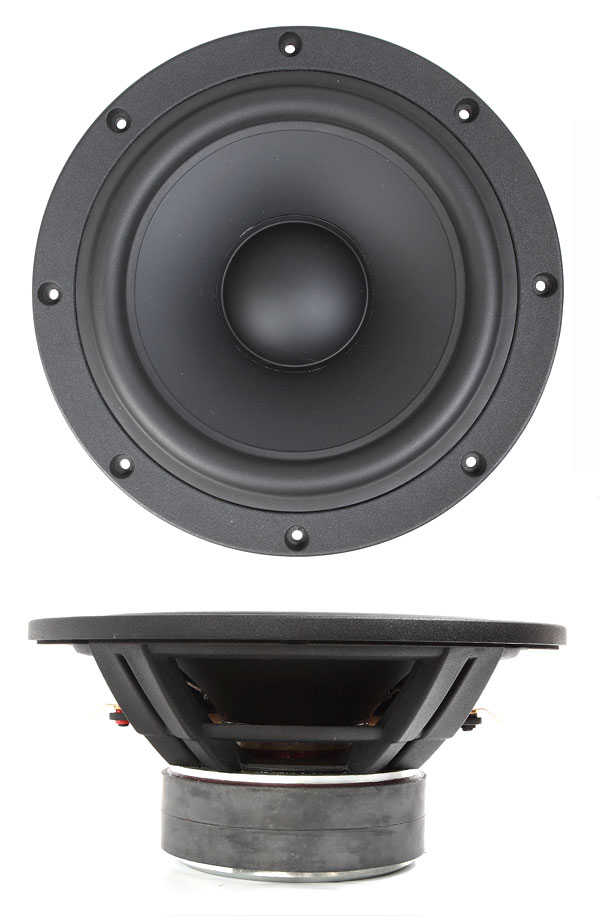

SB29SWNRX-S75-6
http://www.sbacoustics.com/index.php/products/woofers/10-sb29swnrx-s75-6/
販売価格はお問い合わせください。
SB34SWNRX-S75-6
http://www.sbacoustics.com/index.php/products/woofers/12-sb34swnrx-s75-6/
販売価格はお問い合わせください。

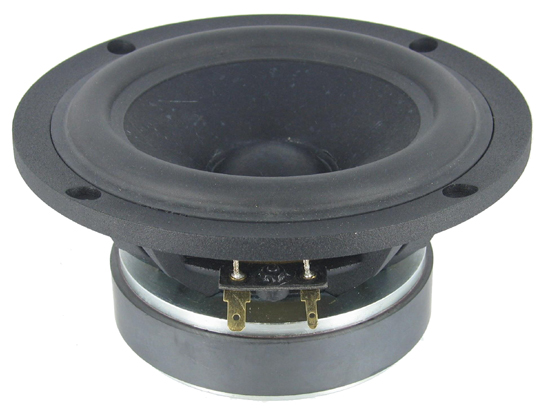

SB15NRXC30-8-UC ( Uncoated Cone ) 5" Woofer
http://www.sbacoustics.com/index.php/products/midwoofers/5-sb15nrxc30-8/
販売価格はお問い合わせください。

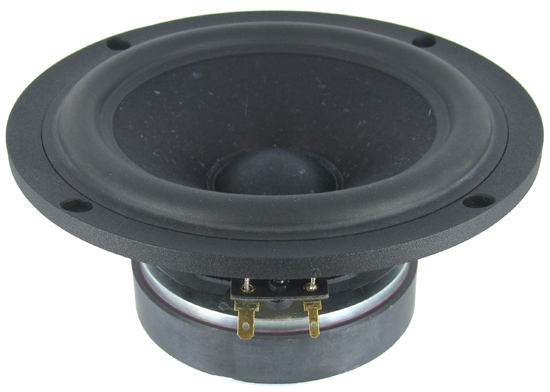

SB17NRXC35-8-UC( Uncoated Cone )6.5"Woofer
http://www.sbacoustics.com/index.php/products/midwoofers/6-sb17nrxc35-8/
販売価格はお問い合わせください。

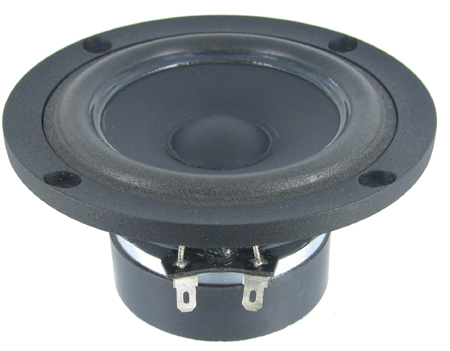

SB12NRXF25-4 4" midrange - 4 ohm
販売価格はお問い合わせください。 スペック http://sbacoustics.com/index.php?link=products_detail&nop=1&noc=14
|

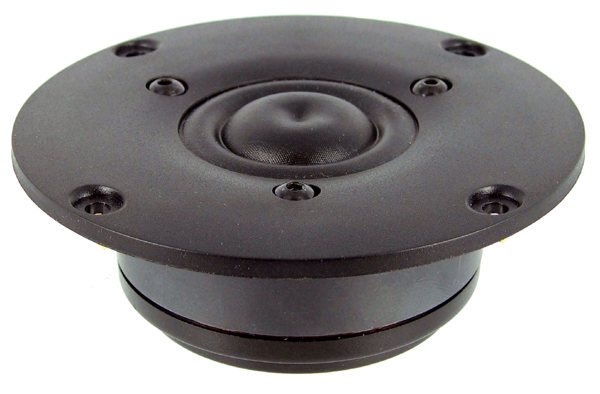

SB29RDC-C000-4 Ring Dome tweeter
販売価格はお問い合わせください。 スペック http://sbacoustics.com/index.php?link=products_detail&nop=1&noc=25 Vifa XT25TG30-04 1" Ring Radiator Tweeter より音が良いといわれ始めています。 |

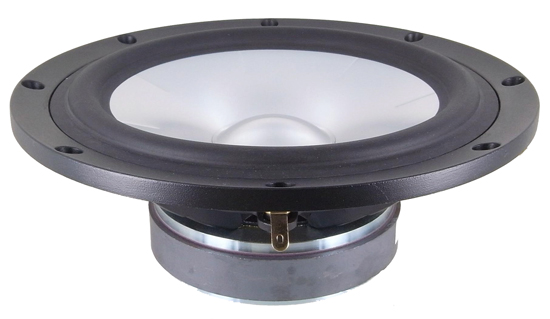

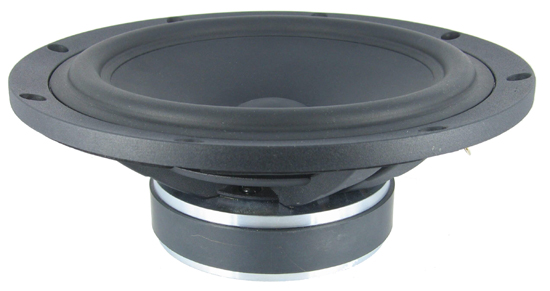

SB23NRXS45-8 8" Woofer
販売価格はお問い合わせください。 スペック http://sbacoustics.com/index.php?link=products_detail&nop=1&noc=17 |

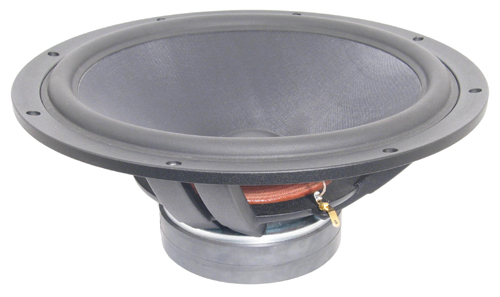

SB42FHC75-6 15" Woofer
§ Cone has paper honeycomb structure with fiberglass § Rigid cast frame with large windows § rubber surround § 93.5dB Efficiency § 3" diameter voice coil § 11.5mm peak linear excursion (x-max) § Ventilated spider and vented pole piece § 300 Watt power handling Large cone drivers often experience problems with the cone material changing shape while being driven. There is always a compromise between a rigidity and lightness of the cone. SB Acoustics has solved this problem by using a rigid honeycomb structure made from paper and then covered it
with
a thin membrane of fiberglass. The result
is a very rigid and light cone with
minimized cone distortion. This increases power handling and reduces mechanical noise.
The cast frame has been engineered for
minimum reflections and maximum air flow.
販売価格はお問い合わせください。 10日前後で輸入します。 |

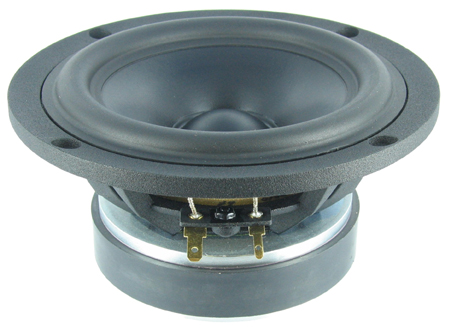

SB15NRXC30-8
5" Woofer
§ Non-resonant coated Papyrus fiber cone § Low damping SBR surround § Open structure cast frame for reduced reflections § Copper cap on pole piece § Raised spider § 30mm Voice Coil diameter § Frequency range 38Hz to 4kHz § Gasket Specifications
§ Impedance 8Ω § Net Weight 1.48Kg § Voice Coil Diameter 30.5mm § Magnet Gap Flux Density 1.0T § Free Air Resonance 38Hz § Qms 4.8 § Qts 0.33 § Power Handling 50W
Dimensions:
Sealed box of 0.15 cubic feet for and F3 of 100Hz 詳しくは http://sbacoustics.com/specproduct.php?product_name=5 SB15NRXC30-8 販売価格はお問い合わせください。 10日前後で輸入します。 |

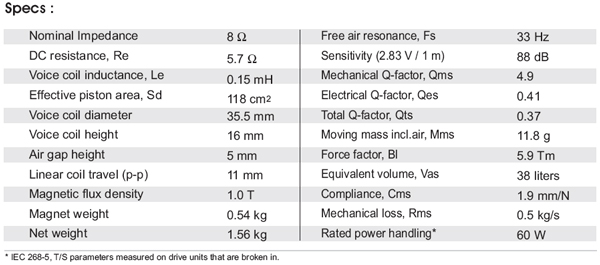

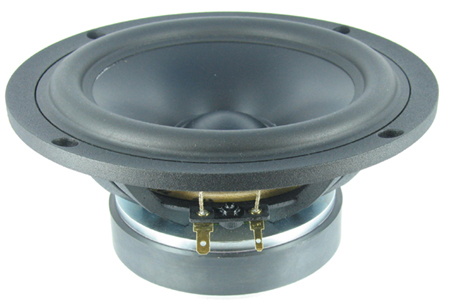

SB17NRXC30-8 6" Woofer
§ Non-resonant coated Papyrus fiber cone § Low damping SBR surround § Open structure cast frame for reduced reflections § Copper cap on pole piece § Raised spider § 35mm Voice Coil diameter § Frequency range 38Hz to 3.5kHz § Gasket Specifications
§ Impedance 8Ω § Net Weight 1.56Kg § Voice Coil Diameter 35.52mm § Magnet Gap Flux Density 0.97T § Free Air Resonance 33Hz § Qms 5.8 § Qts 0.33 § Sensitivity 89db § Power Handling 60W
Dimensions:
Sealed box of 0.3 cubic feet for and F3 of 77Hz 詳しくは http://sbacoustics.com/specproduct.php?product_name=6 SB17NRXC35-8 販売価格はお問い合わせください。 10日前後で輸入します。 |
SB29NRX75-6 10" Woofer
§ Hard paper cone § Low damping SBR surround § Open structure cast frame for reduced reflections § Raised spider § 75mm Voice Coil diameter § Frequency range 22Hz to 900Hz § Gasket Specifications § Impedance 8Ω § Net Weight 5.3Kg § Voice Coil Diameter 75.55mm § Magnet Gap Flux Density 0.87T § Free Air Resonance 21Hz § Qms 5.7 § Qts 0.35 § Sensitivity 88db § Power Handling 200W
Sealed box of 0.8 cubic feet for and F3 of 48Hz
詳しくは http://sbacoustics.com/specproduct.php?product_name=10 SB29NRX75-6 販売価格はお問い合わせください。 10日前後で輸入します。 |

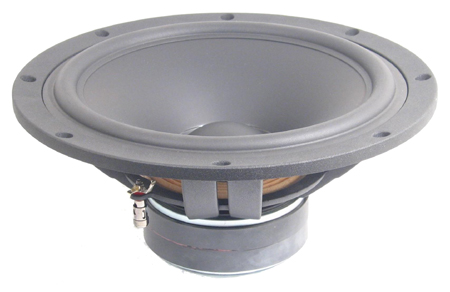

SB34NRX75-6 12" Woofer
§ Hard paper cone § Low damping SBR surround § Open structure cast frame for reduced reflections § Raised spider § 75mm Voice Coil diameter § Frequency range 19Hz to 1kHz § Gasket Specifications § Impedance 6Ω § Net Weight 5.85Kg § Voice Coil Diameter 75.6mm § Magnet Gap Flux Density 0.9T § Free Air Resonance 19Hz § Qms 5.1 § Qts 0.40 § Sensitivity 90db § Power Handling 200W
Dimensions: 詳しくは http://sbacoustics.com/specproduct.php?product_name=12 SB34NRX75-6 販売価格はお問い合わせください。 10日前後で輸入します。 |

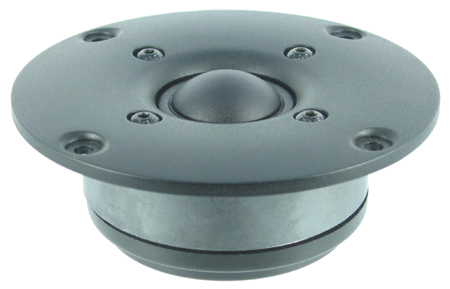

SB25STC-C000-4 Textile Dome Tweeter
§ Optimized polymer face plate § 25mm fabric dome § copper pole shorting ring § Pole piece diffuser with venting § Gold plated terminals (wider terminal is positive) § Frequency range 1500Hz to 23kHz § Very good off axis response § Large terminal is positive, small one is negative § Specifications § Impedance 4Ω § Net Weight 0.5Kg § Voice Coil Diameter 25.4mm § Magnet Gap Flux Density 1.25T § Free Air Resonance 680Hz § Qms 2.0 § Qts 0.80 § Sensitivity 91db Dimensions
Face plate diameter: 100mm 詳しくは http://sbacoustics.com/specproduct.php?product_name=SB25STC-C000-4 販売価格はお問い合わせください。 10日前後で輸入します。 |
