 Mr.Bernard Salabert より



If you listen to the 21 cm in comparison to Lowther , Supravox , Fostex , you'd probably change your mind ;

same for interconnects and speaker cables ; may be one day ... all people who try , never want to give back ;

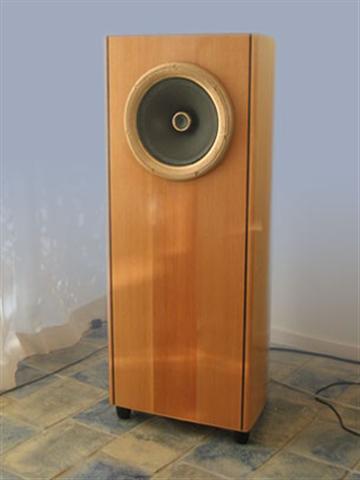

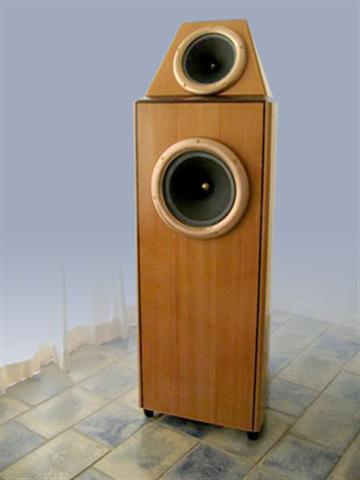

Regarding cabinets :

We do not know any cabinet kind giving good results as the air enclosed in a cabinet,

even decompressed by a port , is mecanicly a spring attached to the cone and so destroy a lot of qualities

 , so much that , if it can be acceptable for a bass unit in a multyway system , it is dramatic for a wide range ;

And as you can let the folding baffle folded as a triangle and open or not or plus or minus for listening ,

and most of clients let it closed , only opened at the top = not far from bass reflex

 ( but with a very low and light accord ), so it is a thin column only 30 or 40 cm wide ,

much more little than any kind of cabinet ( br , tl , horn , onken ...) ;

as it is 3 simple boards assembled with piano hinge , it is very simple to build and sand ,

and finishing is also very easy by hanging it with a beautiful cloth stapled on rear ,

important for sound ( boarder effects ) , to listen music ( beautiful sounds nicer ) in living room to live with ,

and/or WAF ; other important points are that if you respect our drawing you will 100 % get good results

without any important mistake , at the opposite of any classic cabinet kind ,

and that it gives a unique hudge range of easy tuning by opening plus or less or/and moving plus or less

to the rear or/and side wall ; regarding horn , it is not possible to make a wide range horn ,

so you will put plus 3 dB mini in an area and not in an other one,

and this is a pitty as for once we have a unit which is very well balanced from 30 hz to 30 khz


同軸ドライバー以外はフルレンジドライバーではありません。

ワイドバンドウーハーです。

ツゥイターは必ず必要です。

ドライバー設計は Max50W/Ch前後の真空管アンプを使うことを前提にとしています。

低出力真空管アンプ、純A級アンプ25W/Ch(ラクスマン、アキュフェースなど)をお薦めいたします。

3-WAYにする場合ウーハーはEMS B15EX Woofer(励磁型)をお薦めします。
音質も良く合い、超ハイスピードで高解像度、重低音がExcellentです。

TweeterはGOTO(SG-16TT),FOSTEXホーン型(T96A-EX2,T500AMK2)が良いと思います。
(Cross pointは8KHz以上を推奨します。)

最近、ヨーロッパではPHY-HPアルニコドライバー(2WAY)からEMS励磁型フルレンジ(30cm)に移行しています。

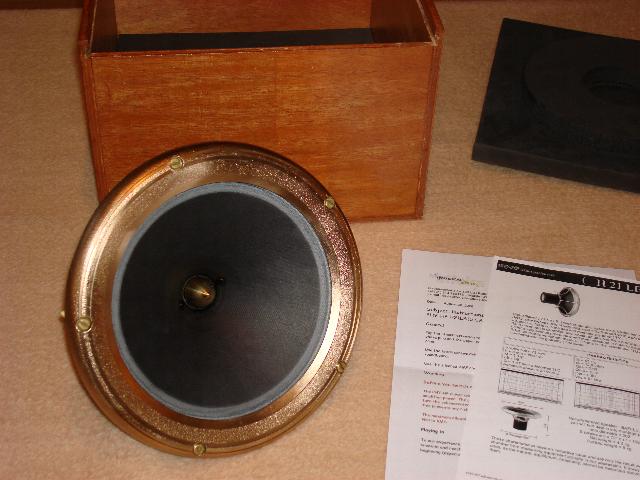

H21LB15

 Wide Range 8" Paper Cone

Paper cone
Alnico 3SC magnet
Cast Brass frame
Shielded magnet
Designed for use in an open baffle (no-enclosure).
 Znom 15 ohm
fs 45 Hz
Nom. Power 25 W
Re 12.8 ohm
Qms 6.10
Qes 0.65
Qts 0.59
Mms 9.4 g
Vas 97 ltrs
VC Ø 25 mm
Sensitivity 98 dB
Zmin 14.4 ohm
Zmax 155 ohm
Frame diameter 234 mm
Cut out diameter 202 mm
Depth 154 mm

販売価格はお問い合わせください。

20cmアルニコ磁石フルレンジを開発する海外の企業は

必ずと言っていいくらいこのユニットの中低域の音質を目標に開発します。


とにかく素晴らしい中低域のsonic qualityです。

予算があればvoice coil silverタイプをお勧めいたします。

更に音質はグレードアップします。

Tweeterは必ず必要としますが、PHY-HP Tweeterはネットワーク内蔵されていて、つなぐだけです。

音質もピタリ合います。お勧めです。

(ペーパーコーンですので普通のリボンツゥイターは合わないと思います。Mundorf AMTは合います。)

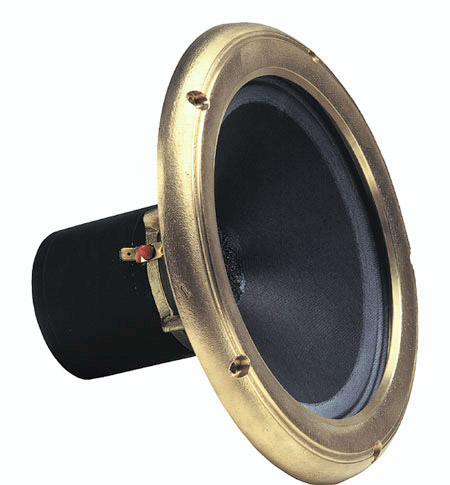

H21LB15SAG

Wide Range 8" Silver VC wire

Silver voice coil wire
Paper cone
Alnico 3SC magnet
Cast Brass frame
Shielded magnet
Designed for use in an open baffle (no-enclosure).


Znom 15 ohm
fs 45 Hz
Nom. Power 15 W
Re 12.8 ohm
Qms 6.10
Qes 0.65
Qts 0.59
Mms 9.4 g
Vas 97 ltrs
VC Ø 25 mm
Sensitivity 98 dB
Zmin 14.4 ohm
Zmax 155 ohm
Frame diameter 234 mm
Cut out diameter 202 mm
Depth 154 mm

マグネットタイプユニット(Silver VC wire)の中では中域は素晴らしいと思います。

では励磁タイプと比較しますとやはり励磁(EMS LB8EXMK2)が良いです。(個人の音質の好みはあります

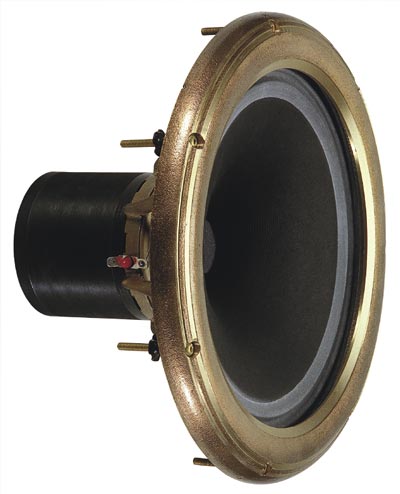

H30LB15

Wide Range 12"Paper Cone



Paper cone
Alnico 3SC magnet
Cast Brass frame
Shielded magnet
Designed for use in an open baffle (no-enclosure).


Znom 16 ohm
fs 3
6 Hz
Nom. Power 50 W
Re 13.8 ohm
Qms 6.60
Qes 0.62
Qts 0.59
Mms 23.1 g
Vas 224 ltrs
VC Ø 35 mm
Sensitivity 97 dB
Zmin 14.9 ohm
Zmax 125 ohm
Frame diameter 311 mm
Cut out diameter 270 mm
Depth 195 mm


販売価格はお問い合わせください。


H30LB15SAG

Wide Range 12" Silver VC Wire

Silver voice coil wire
Paper cone
Alnico 3SC magnet
Cast Brass frame
Shielded magnet
Designed for use in an open baffle (no-enclosure).

97dB
fs 32Hz
re 13.8 ohm
Qts 0.59
Vas 224 liters
Ms 23.2g
Power 30W rms

販売価格はお問い合わせください。

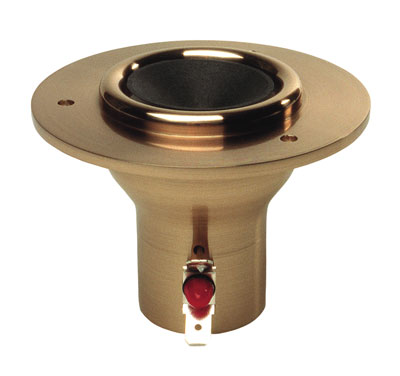

TW37

Piezo Driven Paper Cone Super Tweeter

(Matched Pair)

 PHY TW37 Paper cone super tweeter, driven by a Piezo motor. 83mm in diameter, 83mm deep. 98dB, frequency response 10kHz to 30kHz.

 Crossover filter is integral. Sold in matched pairs.

販売価格はお問い合わせください。

http://www.youtube.com/watch?v=Xkfwrjwf79c

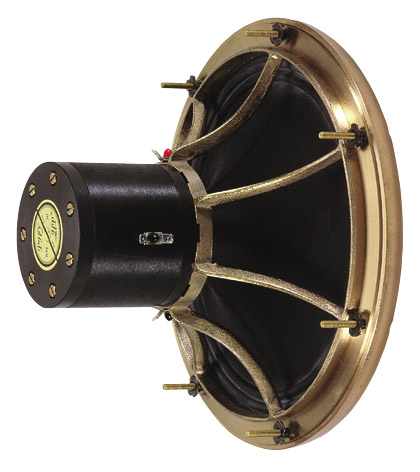

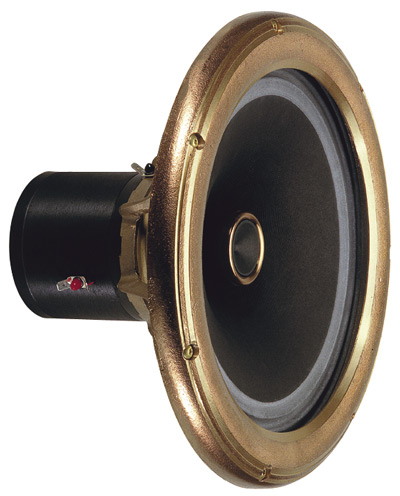

H30LB15SAG

Coaxial



PHY-HP Speakers KM30SAG Coaxial 12" Silver VC wire Silver フランス製

 再生周波数帯域は32Hz〜30kHz、16Ω、感度97db,

磁石 alnico 3SC ( = no magnetic looses )。ボイスコイルSilver タイプ、

フレームは bronze SN12 without lead (砲金)


PHY 12" Coaxial Speaker

Silver voice coil wire

 Paper cone woofer

Piezo Paper cone tweeter

Cast Brass frame Shielded magnet Designed for use in an open baffle (no-enclosure).

97dB fs 32Hz re 13.8 ohm Qts 0.59 Vas 224 liters Ms 23.2g Power 30W


世界的に高い評価を受けているユニットです。

オープンバッフル推奨、バスレフ、TQWT、

内容積267L 密閉ボックス推奨(Sealed Enclosure )F3 = 43Hz

同軸ユニットですがクロスオーバーネットワークは必要ありません。

プラグアンドプレイです。

 音質は グレート、エクセレント、ジャンルを選ばず

ジャズ、クラシック最高、弦、ピアノは特にすばらしい!。



販売価格はお問い合わせください。

3週間から4週間ぐらいでフランスより輸入
