ACCUTON

MidWoofer

http://www.accuton.de/home/index.php?&m1=1&m2=&m3

保証期間 1年間(メーカー規定範囲のみ)

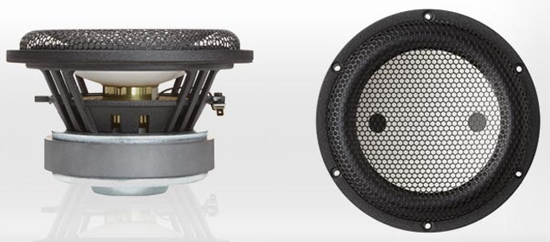

C173-6-191E

6.5" Ceramic Cut Cone Mid/bass

  • 7 Inch bass-midrange for small bookshelf monitors or slim floorstanders
  • Medium sized voice coil with 32mm titanium voice coil former for high midrange resolution
  • Anti-resonant cutout fills in the ceramic dome provide high damping of the 4 kHz dome resonance
  • Overhung motor design
  • High shape rubber surround
  • Vented voice coil, pole piece and spider



販売価格はお問い合わせてください。


C158-8-085

5.5" Ceramic Cone Mid/Bass

販売価格はお問い合わせてください。

The  C158-8-085  is a  5.5 inch bass - midrange driver with ultra hard ceramic dome.A  FEA optimized  overhung motor design with 25 mm titanium voice coil former guarantees extraordinary low energy storage and good heat transfer. The low loss rubber surround and a  thin fabric spider  center the moving parts with high linearity. As a typical small home stereo  bass - midrange driver, we recommend our C158-8-085 for an application from 38 Hz – 3000 Hz.

1,Overhung Motor Design

2,25mm Titanium VC Former

3,Soft Rubber Surround

4,Vented VC, Pole Piece and Spider


C173-6-095E

6.5" Ceramic Mid/Bass

販売価格はお問い合わせてください。


The C173–6–095E is a 6.5 inch bass-midrange driver with ultra hard ceramic dome. Anti-resonant cutout fills in the ceramic dome provide for damping of the 4 kHz dome resonance. A FEA optimized overhung motor design with 38 mm titanium voice coil former guarantees very low energy storage and good heat transfer. The low loss rubber surround and a thin fabric spider center the moving parts with high linearity. As a typical home stereo bass - midrange driver, we recommend our C173-6-095E for an application from 35 Hz - 2800 Hz.

1,Special Dome Cutouts
2,Overhung Motor Design
3,38mm Titanium VC Former
4,Soft Rubber Surround
5,Vented VC, Pole Piece and Spider


C173-6-191E



http://www.accuton.de/drivers/detail.php?driver=55&matID=4&appID=3

販売価格はお問い合わせてください。


C158-8-085

販売価格はお問い合わせてください。

The  C158 - 8 - 085  is a  5.5 inch bass - midrange driver with ultra hard ceramic dome.A  FEA optimized

 overhung motor design with 25 mm titanium voice coil former guarantees extraordinary low energy storage

and good heat transfer. The low loss rubber surround and a  thin fabric spider  center the moving parts

with high linearity. As a typical small home stereo  bass - midrange driver,

we recommend our C158 - 8 - 085 for an application from


C173-6-095 6.5" Ceramic Cone Mid/Bass Driver

販売価格はお問い合わせてください。

The C173–6–095 is a 6.5 inch bass - midrange driver with ultra hard ceramic dome.

A FEA optimized overhung motor design with 38 mm titanium voice coil former guarantees

 very low energy storage and good heat transfer.

The low loss rubber surround and a thin fabric spider center the moving parts with high linearity.

 As a typical home stereo bass-midrange driver, we recommend our C173–6–095 for an application

 from 35 Hz – 2500 Hz.


C173-8-94

6.5" Ceramic Bass/Mid Woofer



販売価格はお問い合わせてください。

The ultra hard ceramic dome material moves like a piston without flexing.

High internal sound velocity features very low distortion and virtually no coloration.



Thiele/Small Parameters



sensitivity E 89.1 dB

DC-resistance R 8.0 Ohm

resonance frequency fres 26 Hz

equivalent vol. of air Vas 60.7 l

mechanical Q Qms 1.3

electrical Q Qes 0.21

total Q Qts 0.181

effective piston area S 133 cm²

moving mass Mms 15.5 g

suspension compl. Cms 2.42 mm/N

mechanical resistance Rms 1.95 kg/s-1



Voice coil / Magnet Data



power handling P 130 Watt

voice coil diameter D 38 mm

voice coil former   Al

voice coil height h 13 mm

number of layers   2

voice coil inductance Lbm 0.51 mH

pole plate thickness   6.0 mm

linear excursion Xmax ±4.0 mm

flux density B 1.2 T

force factor BL 9.8 NA-1

ferrofluid filling   no
