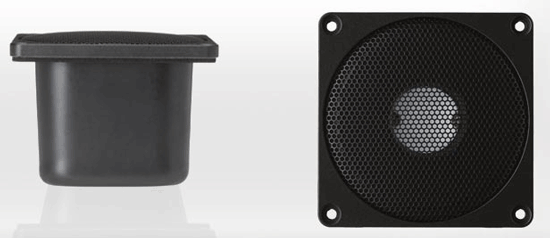

C25-6-012 1" Ceramic Dome Tweeter
販売価格はお問い合わせてください。
Accuton C25-6-012 1" Ceramic Dome
Tweeter
The C25–6–012 is a 1 inch tweeter with
ultra hard ceramic dome in a 82 mm
frontplate. Anti-resonant cutout fills
in the ceramic dome provide for damping
of the 37 kHz dome resonance. An
overhung motor design with vented
aluminium voice coil former guarantees
low energy storage and good heat
transfer. The soft fabric surround and
ferrofluid with high viscosity center
the moving parts with excellent
linearity. We recommend an application
above 2500 Hz.
|
1,Special Dome Cutouts 2,Overhung Motor Design 3,Soft Fabric Surround 4,Vented Voice Coil and Pole Piece |
C25-6-013 1" Ceramic Dome Tweeter
販売価格はお問い合わせてください。
Accuton C25-6-013 1" Ceramic Dome Tweeter with Neodymium Motor
|
1,Special cone cutouts 2,Underhung motor design 3,Soft fabric surround 4,Vented VC and pole piece |
The C25–6–013 is a 1 inch tweeter with ultra hard ceramic dome in a 82 mm frontplate. Anti-resonant cutout fills in the ceramic dome provide for damping of the 37 kHz dome resonance. An underhung motor design with vented aluminium voice coil former guarantees low energy storage and excellent heat transfer. The soft fabric surround and ferrofluid with high viscosity center the moving parts with distinctive linearity. We recommend an application above 2500 Hz.

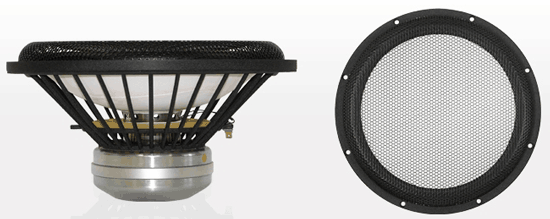

S280-6-282 11" Sandwich Cone Woofer
販売価格はお問い合わせてください。
S280-6-282 11" Sandwich Cone Woofer
The S280–6–282 is an 11 inch bass driver with
ultra stiff ceramic – sandwich dome. The FEA
optimized underhung motor design with 55 mm
titanium voice coil former guarantees very low
energy storage and good heat transfer. The BL
factor is achieved through a specific strong
motor architecture, and not by the use of many
VC wire layers, which would raise inductance.
The special high shape, narrow surround is used
to get maximum excursion limits with the largest
possible piston area. A new basket was designed
with special attention to optimum airflow and
resonance control. For this exceptional bass
driver,
we recommend an application from 25 Hz – 800 Hz.
|
1,Underhung Motor Design 2,Neodymium Motor System 3,55mm Titanium VC Former 4,Special Soft Rubber Surround 5,Vented VC, Pole Piece and Spider |

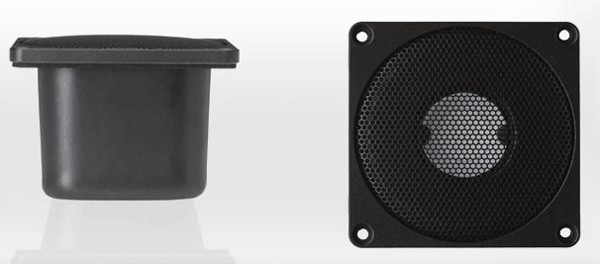

C30-6-024
1.2" Ceramic Dome, Neodymium Magnet
販売価格はお問い合わせてください。
The C30–6–024 is a 1.2 tweeter with ultra hard ceramic dome in a 82 mm frontplate. Anti-resonant cutout fills in the ceramic dome provide for damping of the dome resonance. A neodymium overhung motor design with vented aluminium voice coil former guarantees low energy storage and excellent heat transfer. The soft fabric surround and ferrofluid with high viscosity center the moving parts with distinctive linearity. We recommend an application above 1800 Hz.
1,Special Dome Cutouts
2,Overhung Motor System
3,Soft Fabric Surround
4,Neodymium Magnet System
5,Vented VC and Pole Piece
6,Ferrofluid Cooling

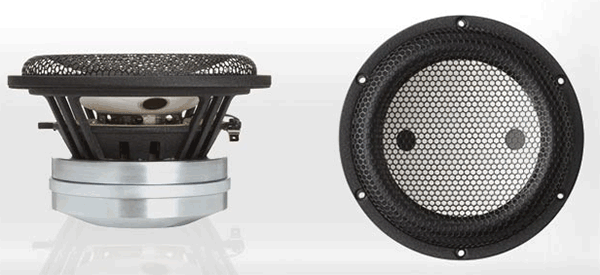

C173-6-090
6.5" Ceramic Cone Midrange
販売価格はお問い合わせてください。
The C173–6–090 is a 6.5 inch midrange driver with ultra hard ceramic dome. Anti-resonant cutout fills in the ceramic dome provide for damping of the 6 kHz dome resonance. A FEA optimized underhung motor design with 55 mm titanium voice coil former guarantees very low energy storage and good heat transfer. Its high force factor leads to outstanding transient response for more realistic reproduction. The low loss fabric surround and a thin fabric spider center the moving parts with high linearity. For this amazing midrange driver, we recommend an application from 80 Hz – 3200 Hz.
1,Special Dome Cutouts
2,Underhung Motor System
3,55mm Titanium VC Former
4,Soft Fabric Surround
5,Vented VC, Pole Piece and Spider
6,Neodymium Magnet System

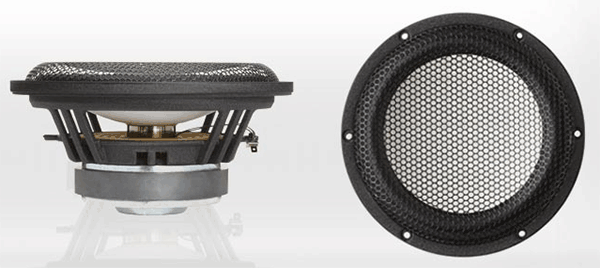

C220-6-221
8" Ceramic Cone Woofer
販売価格はお問い合わせてください。
The C220–6–221 is an 8 inch bass driver with ultra hard ceramic dome.A FEA optimized overhung motor design with 38 mm titanium voice coil former guarantees very low energy storage and good heat transfer. The low loss rubber surround and a thin fabric spider center the moving parts with high linearity. As a typical home stereo bass driver, we recommend our C220-6-221 for an application from 32 Hz - 2000 Hz.
1,Overhung Motor Design
2,38mm Titanium VC Former
3,Soft Rubber Surrround
4,Vented VC, Pole Piece and Spider

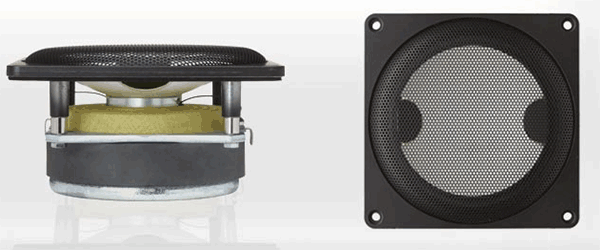

C90-6-078
5" Ceramic Dome Midrange
販売価格はお問い合わせてください。
The C90-6-078 is a 5 inch midrange driver with ultra hard ceramic dome. Anti-resonant cutout fills in the ceramic dome provide for damping of the 8 kHz dome resonance. A FEA optimized overhung motor design with 38 mm aluminium voice coil former guarantees low energy storage and excellent heat transfer. The low loss fabric surround and a thin fabric spider center the moving parts with high linearity. As a typical home stereo midrange driver, we recommend our C90-6-078 for an application from 200 Hz – 5000 Hz.
1,Special Dome Cutouts
2,Overhung Motor System
3,38mm Aluminum VC Former
4,Soft Fabric Surround
5,Vented Pole Piece and Spider
6,Usable from 200Hz to 5kHz

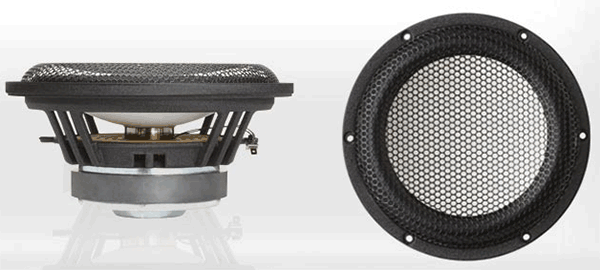

C220-6-221
8" Sandwich Cone Woofer
販売価格はお問い合わせてください。
The S220–6–221 is an 8 inch bass driver with ultra stiff ceramic - sandwich dome. A FEA optimized overhung motor design with 38 mm titanium voice coil former guarantees very low energy storage and good heat transfer. The low loss rubber surround and a thin fabric spider center the moving parts with high linearity. As a typical home stereo bass driver, we recommend our S220-6-221 for an application from 31 Hz - 1000 Hz.
1,Overhung Motor Design
2,38mm Titanium VC Former
3,Soft Rubber Surround
4,Vented VC, Pole Piece and Spider
5,Sandwich Ceramic Cone

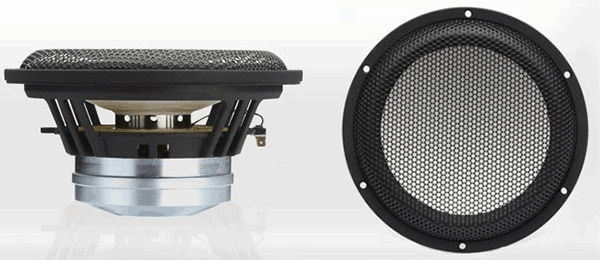

S220-6-222
8" Ceramic Sandwich Cone Woofer
販売価格はお問い合わせてください。
The S220–6–222 is an 8 inch bass driver with ultra stiff ceramic - sandwich dome.A FEA optimized overhung motor design with 55 mm titanium voice coil former guarantees very low energy storage and good heat transfer. Its high force factor leads to outstanding transient response for more realistic reproduction. The low loss rubber surround and a thin fabric spider center the moving parts with high linearity. The recommended application for this excellent bass driver is from 31 Hz - 1000 Hz.
1,Underhung Motor Design
2,55mm Titanium VC Former
3,Soft Rubber Surround
4,Vented VC, Pole Piece and Spider
5,Neodymium Magnet System

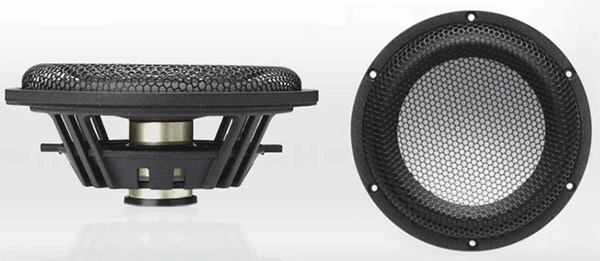

P173
Passive Radiator
販売価格はお問い合わせてください。
P173 Passive Radiator with Aluminum Cone
173mm flange diameter
146mm cutout diameter

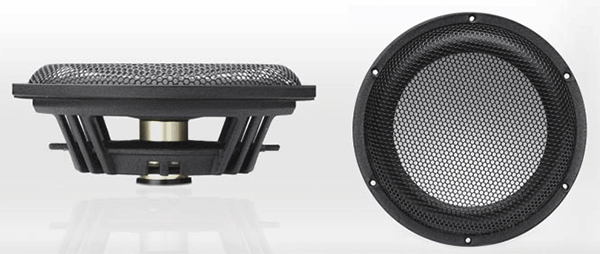

P220
8" Passive Radiator
販売価格はお問い合わせてください。
P220 8" Aluminum Cone Passive Radiator
Flange diameter 220mm
Cut out diameter 191mm

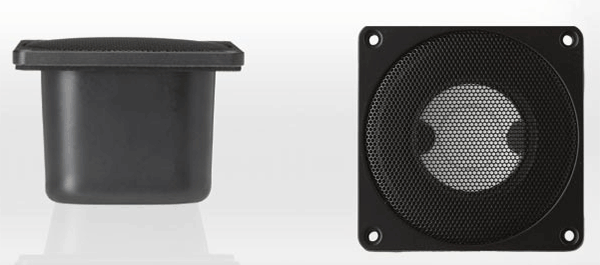

C50-8-044
2" Ceramic Dome Midrange
販売価格はお問い合わせてください。
The C50–6–044 is a high – midrange driver with ultra hard ceramic dome in a 106 mm frontplate. Anti-resonant cutout fills in the ceramic dome provide for damping of the 19 kHz dome resonance. An overhung motor design with vented aluminium voice coil former guarantees low energy storage and excellent heat transfer. The soft fabric surround and ferrofluid with high viscosity center the moving parts with distinctive linearity. We recommend an application above 800 Hz.
1,Special Dome Cutouts
2,Overhung Motor Design
3,Soft Fabric Surround
4,Vented VC and Pole Piece
5,Ferrofluid Cooled

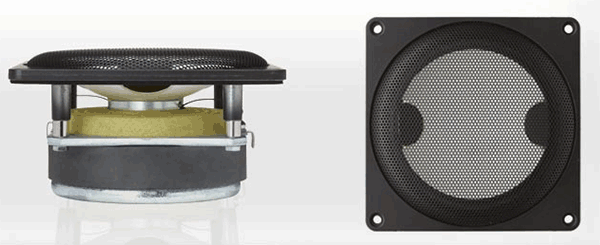

C90-6-079
5" Ceramic Dome Midrange
販売価格はお問い合わせてください。
The C90-6-079 is a 5 inch midrange driver with ultra hard ceramic dome. Anti-resonant cutout fills in the ceramic dome provide for damping of the 8 kHz dome resonance. A FEA optimized overhung motor design with 38 mm aluminium voice coil former and ferrofluid filling guarantees excellent heat transfer. The low mass inverted fabric surround and a thin fabric spider center the moving parts with high linearity.As a typical home stereo midrange driver, we recommend our C90-6-079 for an application from 250 Hz – 5000 Hz.
1,Special Dome Cutouts
2,Overhung Motor Design
3,38mm Aluminum VC Former
4,Inverted Thin Fabric Surround
5,Vented Pole Piece and Spider

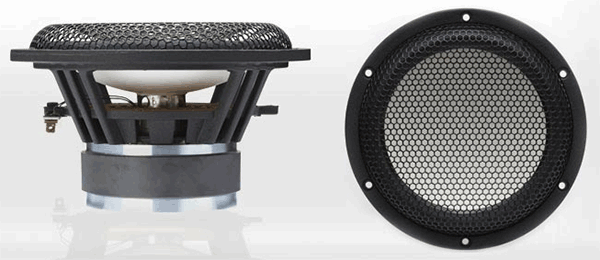

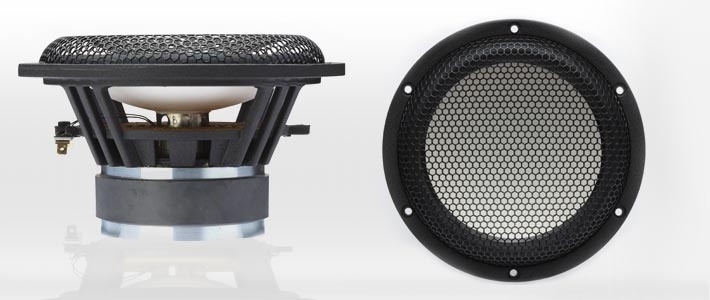

C158-8-085
5.5" Ceramic Cone Mid/Bass
販売価格はお問い合わせてください。
The C158-8-085 is a 5.5 inch bass - midrange driver with ultra hard ceramic dome.A FEA optimized overhung motor design with 25 mm titanium voice coil former guarantees extraordinary low energy storage and good heat transfer. The low loss rubber surround and a thin fabric spider center the moving parts with high linearity. As a typical small home stereo bass - midrange driver, we recommend our C158-8-085 for an application from 38 Hz – 3000 Hz.
1,Overhung Motor Design
2,25mm Titanium VC Former
3,Soft Rubber Surround
4,Vented VC, Pole Piece and Spider

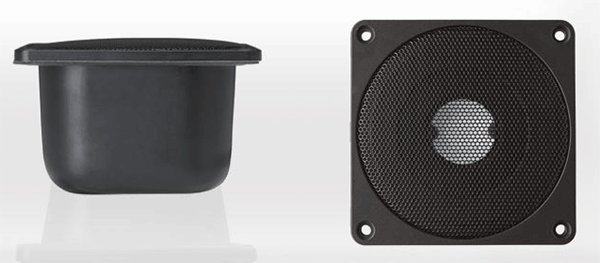

C30-6-023
Ceramic
Dome Tweeter
販売価格はお問い合わせてください。
The C30–6–023 is a 1.2 tweeter with ultra hard
ceramic dome in a 106 mm frontplate. Anti-resonant cutout
fills in the ceramic dome provide for damping of the dome
resonance. An overhung motor design with vented aluminium
voice coil former guarantees low energy storage and
excellent heat transfer. The soft fabric surround and
ferrofluid with high viscosity center the moving parts with
distinctive linearity. We recommend an application above
1800 Hz.
1,Special Dome Cutouts
2,Overhung Motor Design
3,Soft Fabric Surround
4,Vented VC and Pole Piece
5,Ferrofluid Cooled

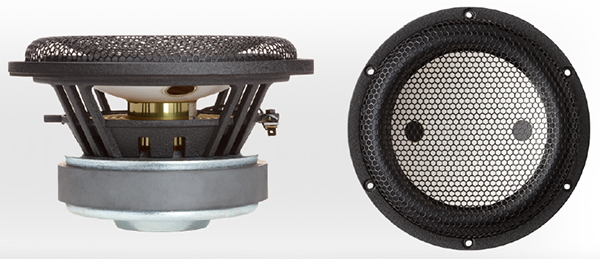

C173-6-095E
6.5"
Ceramic Mid/Bass
販売価格はお問い合わせてください。
The C173–6–095E
is a 6.5 inch bass-midrange driver with ultra hard ceramic
dome. Anti-resonant cutout fills in the ceramic dome provide
for damping of the 4 kHz dome resonance. A FEA optimized
overhung motor design with 38 mm titanium voice coil former
guarantees very low energy storage and good heat transfer.
The low loss rubber surround and a thin fabric spider center
the moving parts with high linearity. As a typical home
stereo bass - midrange driver, we recommend our C173-6-095E
for an application from 35 Hz - 2800 Hz.
1,Special Dome Cutouts
2,Overhung Motor Design
3,38mm Titanium VC Former
4,Soft Rubber Surround
5,Vented VC, Pole Piece and Spider
C158-8-085
販売価格はお問い合わせてください。
The C158 - 8 - 085 is a 5.5 inch bass - midrange driver with ultra hard ceramic dome.A FEA optimized
overhung motor design with 25 mm titanium voice coil former guarantees extraordinary low energy storage
and good heat transfer. The low loss rubber surround and a thin fabric spider center the moving parts
with high linearity. As a typical small home stereo bass - midrange driver,
we recommend our C158 - 8 - 085 for an application from

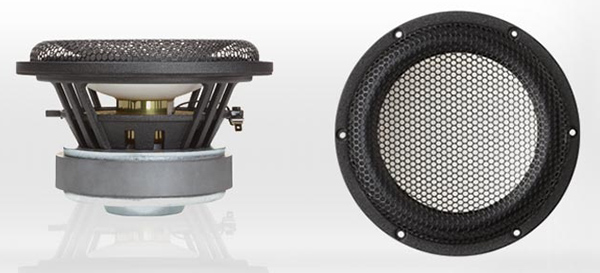

C173-6-095 6.5" Ceramic Cone Mid/Bass Driver
販売価格はお問い合わせてください。
The C173–6–095 is a 6.5 inch bass - midrange driver with ultra hard ceramic dome.
A FEA optimized overhung motor design with 38 mm titanium voice coil former guarantees
very low energy storage and good heat transfer.
The low loss rubber surround and a thin fabric spider center the moving parts with high linearity.
As a typical home stereo bass-midrange driver, we recommend our C173–6–095 for an application
from 35 Hz – 2500 Hz.

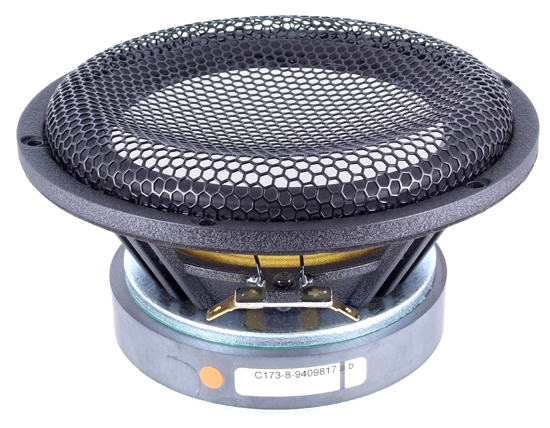

C173-8-94
6.5" Ceramic Bass/Mid Woofer
販売価格はお問い合わせてください。
The ultra hard ceramic dome material moves like a piston without flexing.
High internal sound velocity features very low distortion and virtually no coloration.
Thiele/Small Parameters
sensitivity E 89.1 dB
DC-resistance R 8.0 Ohm
resonance frequency fres 26 Hz
equivalent vol. of air Vas 60.7 l
mechanical Q Qms 1.3
electrical Q Qes 0.21
total Q Qts 0.181
effective piston area S 133 cm²
moving mass Mms 15.5 g
suspension compl. Cms 2.42 mm/N
mechanical resistance Rms 1.95 kg/s-1
Voice coil / Magnet Data
power handling P 130 Watt
voice coil diameter D 38 mm
voice coil former Al
voice coil height h 13 mm
number of layers 2
voice coil inductance Lbm 0.51 mH
pole plate thickness 6.0 mm
linear excursion Xmax ±4.0 mm
flux density B 1.2 T
force factor BL 9.8 NA-1
ferrofluid filling no
★82mm Square Frames
C30N-6-24
★106mm Square Frames
C30-6-23
C30N-6-25
C50-8-44
★Round Baskets
C153-T8-82
C173-8-94
C173N-T6-96
C180-8-94
C180-T6-95
C220-T6-220
Diamond Dome
D20N-6-31 Diamond Dome Tweeter
D25N-6-34 Diamond Dome Tweeter
D30N-6-36 Diamond Dome Tweeter
D50N-6-39 Diamond Dome Midrange
