Mains Power Distribution Block - MD06-US

Supra Mains Power Distribution Block - MD06-US

 28,900円(税込)

Supra LoRad MD06-US/SP Power Distribution Block
(Power cord not included)

Non-Intrusive Filtering and 3-Way Surge Protection
6 Sockets Fully Shielded in Aluminum
Radiation Free (no stray field)


- NIF Transient Filter

This distribution block is provided with Supra NIF, the Non-Intrusive Filtering. NIF is a mild noise RF filter that will not slow down the transient properties of the connected Hi-Fi equipment.


- 3-way Surge Protection


This product is also equipped with Supra SPD - a surge protection device which protects all three ways: Live to earth, Neutral to earth and Live to Neutral. Many surge protectors only operate Live to Neutral and do not protect against surges from lightning.


- Radiation Free

Less interference from the mains to your equipment and cables.
Good for medical equipment sensitive to stray fields.
Good for people sensitive to electric alternating fields.



Specifications:

Chassis: Aluminum
Connectors: Gold Plated Pins
Max AC Current: 15A
Max AV Voltage: 125V
Security: Circuit Breaker 15A with toggling reset
Weight: 0.82kg
Size (LxWxH): 369mm x 85mm x 52mm

Accepts IEC-320 Power Cord Plug

SW-US Mains Power Plug

 Supra SW-US Mains Power Plug

2,980円(税込)

SUPRA LoRad SW Series
A Series of Patented Mains Plugs


SW is a series of mains plugs for 110-240V, safety approved Hospital Grade and Audio Grade. Accepts large cable diameters. Easy to assemble, no loose screws, nothing to slip onto the cable before termination.

SW-US Male Plug

15A. Hospital Grade.
Nema 15 American standard. Gold plated pins and screws.
Accepts a cable jacket diameter up to 11mm.

Accepts condutor size from 1.0mm to 2.5mm.


We recommend using Loctite 222MS on the screws to assure they don't loosen.


SWF-10 Earthed Mains IEC 320 Plug

Supra SWF-10 Earthed Mains IEC 320 Plug

SUPRA LoRad SW Series
A Series of Patented Mains Plugs


SW is a series of mains plugs for 110-240V, safety approved Hospital Grade and Audio Grade. Accepts large cable diameters. Easy to assemble, no loose screws, nothing to slip onto the cable before termination.

SWF-10 Female Connector

10A. IEC-320. Gold plated terminations.
Accepts a cable dia. up to 11mm.

Accepts conductors from 1.0 to 2.5mm.

Fits MCH10 male chassis connector.


We recommend using Loctite 222MS on the screws to assure they don't loosen.

2,980円(税込)

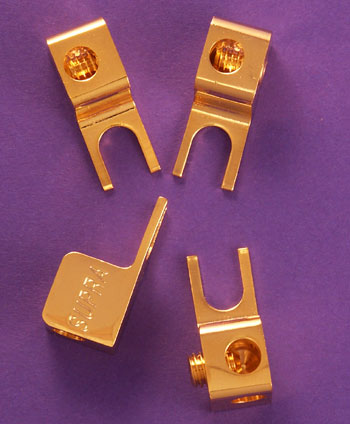

Fork XL Two Pair (4pcs)

Supra  Fork XL Two Pair (4pcs)

Supra Fork XL Spade Terminal - 2 Pair
24K Gold Plated Copper.
Internal Fork width 6.5mm (1/4")
Accepts up to 7 AWG cable.

4個 3,500円(税込)

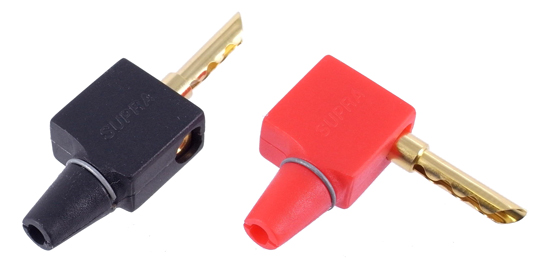

Banana Plug Pair

Supra Banana Plug Pair

  • BFA banana pin for maximum contact with binding post
  • 24K Gold Plated Copper
  • 1 Red and 1 Black
  • Connect on axis or at 90 degree angle.
  • Accepts up to 7 AWG cable.



 1ペア 2,500円(税込)

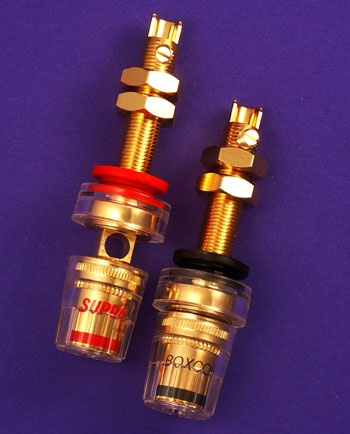

BOXCON Binding Post Pair

Supra BOXCON Binding Post Pair

Supra Boxcon Binding Post - PAIR
1 Black & 1 Red
24K Gold Plated Copper and Insulated.
For cables up to 7 AWG wire
Accepts Bananas or Spades.
For cabinet wall thickness up to 29mm (1 1/8").



 1ペア 8,800円(税込)


CombiCon Banana - Two Pair

Supra CombiCon Banana - Two Pair

24K gold plated loudspeaker connector for cables up to 6mm2.

The banana pin fits also BFA plugs or connectors.

The cable can be attached straight on axis or at a 90 degree angle.

A spade can be attached to the connector body for via connections.

 2 pairs - you will receive 2 red and 2 black



国内標準販売価格2ペア9,800円→8,000円(税込)



Cardas バナナプラグより使いやすく音質も良いです。

スピーカーケーブルの優れた伝送特性を劣化させることなく、スピーカーとアンプ間の接続を確実に、しかも容易に行うことができる待望のターミネーターが、今話題のスピーカーケーブルSUPRA SWORDを開発したSWEDENJENVING社から発売されました。
ターミネーターは精密切削加工によるハイエンドマニア向けの超多芯(6mmφ)用ボディと、ベリリウム・カッパー製のYラグ/バナナプラグの組み合わせで、完全なコンタクトが実現、ノイズ、歪みの発生を抑え、大容量の電流にも耐える構造になっています。ボディ本体は透明絶縁体で保護されており、CEIEC規格に適合しています。


CombiCon Spade - Two Pairs

Supra CombiCon Spade - Two Pairs

24K gold plated loudspeaker connector for cables up to 6 mm2.

The cable can be attached straight on axis or at a 90 degree angle.

Another spade can be attached to the connector body for via connections.

 2 pairs - you will receive 2 red and 2 black

国内標準販売価格2ペア9,800円→8,000円(税込)

スピーカーケーブルの優れた伝送特性を劣化させることなく、スピーカーとアンプ間の接続を確実に、しかも容易に行うことができる待望のターミネーターが、今話題のスピーカーケーブルSUPRA SWORDを開発したSWEDENJENVING社から発売されました。
ターミネーターは精密切削加工によるハイエンドマニア向けの超多芯(6mmφ)用ボディと、ベリリウム・カッパー製のYラグ/バナナプラグの組み合わせで、完全なコンタクトが実現、ノイズ、歪みの発生を抑え、大容量の電流にも耐える構造になっています。ボディ本体は透明絶縁体で保護されており、CEIEC規格に適合しています。
