JENSEN



JENSENは廃業しました。



保証期間 1年間(メーカー規定範囲のみ)

Copper-foil Paper in oil .Silver lead-out . Alumi Tube も販売できます。

表示価格には消費税が含まれていません。


1,  Copper-foil Paper in oil .Silver lead-out .Copper Tube 630V

0.047 μF

6,650

0.1μF

6,850

0.22 μF

7,390

0.47μF

8,000


2,  Silver-foil Paper in oil .Silver lead-out .Alumi Tube 630 V

0.047 μF

22,900

0.1  μF

24,900

0.22 μF

32,900

0.47μF

39,900



3,Copper-foil Paper in oil .Silver lead-out . Paper Tube

大半の規格が受注生産なので支払いは先払いになります。

納品に2カ月〜3カ月かかります。

(最低1回注文数 4個以上でお願いします。)

特に真空管アンプのカップリングコンデンサーにお薦めです。

  Mundorf Supreme Silver Gold Oilより音は良いです。



600V

円(税別)/個

1000V

円(税別)/個

μF



μF



0.01

12,980

0.01

12,980

0.022

12,980

0.022

12,980

0.047

14,980

0.047

12,980

0.1

14,980

0.1

14,980

0.22

15,580

0.22

15,980

0.47

15,980



1.0

18,980





Jensen make 4 different types of copper foil capacitors, all with the same internal make up but fitted inside different enclosures. We have the lower cost aluminium can, highly popular for those on a budget. Then we have the copper can type, probably the more well known of copper foil types, then the paper can type and ceramic can type. All these enclosures offer slighly different characteristics to the sound. The paper can version is beautifully smooth sounding, with great detailing and presence, a real hi-end sound. Fitted with pure silver leadouts.

Polarity - which way round do the go?
 Jensen paper in oil capacitors have an inner and outer foil, simply put the internal construction is like a roll of paper. So there is the start or inner or input - the inside of the roll, and a finish or outer or output - the outside of the roll. You can connect the capacitor either way round it won`t cause any problems, however it is preferable to connect the outer foil to the negative side. This is basically the part of the circuit that is nearest the earth potential. For Jensen capacitors the inner foil is marked by a line.

See the diagram below. The reason for this preference is that the outer foil of the capacitor is the part that will see most interferences, so better to have this nearest the ground where unwanted noise can be earthed. Please note that some of the Jensen capacitors have an inner foil end that marked by red and an outer end marked by black.
circuit

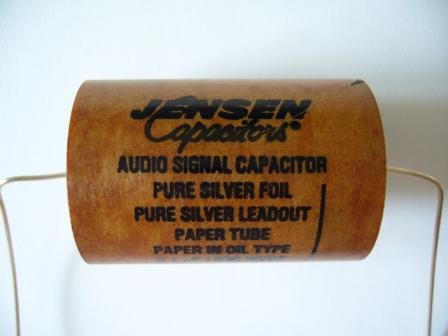

4,  Silver-foil, Paper in oil .Silver lead-out . Paper Tube 630V

真空管アンプのカップリングコンデンサーで銅箔Paper Tube以上のトップエンドの音質をお望みの方に使ってほしいコンデンサーです。

これ以上の音質はない! (DELUNDもSilver-foilはありますが、残念ながら定数が小さいものがありません。)

0.01  μF 25,900
0.022μF 27,000
0.1μF 29,600
0.20μF 34,980
0.22 μF 37,980
0.47μF 45,900

 上記は代表的なものです。その他の製品は問い合わせください。(上記は1個の価格です)

(最低1回注文数/ 銅箔 Paper tubeは 4定数以上、1定数につき2個以上、

銀箔PaperTubeは2規格以上1規格2個以上でお願いします。)

JENSENの新製品  paper tube は copper foil の中で一番音質の良いコンデンサーです。

古典的Copper-foil Paper in oil .Silver lead-out Alumi Tubeよりさらに音質が良い製品です 。

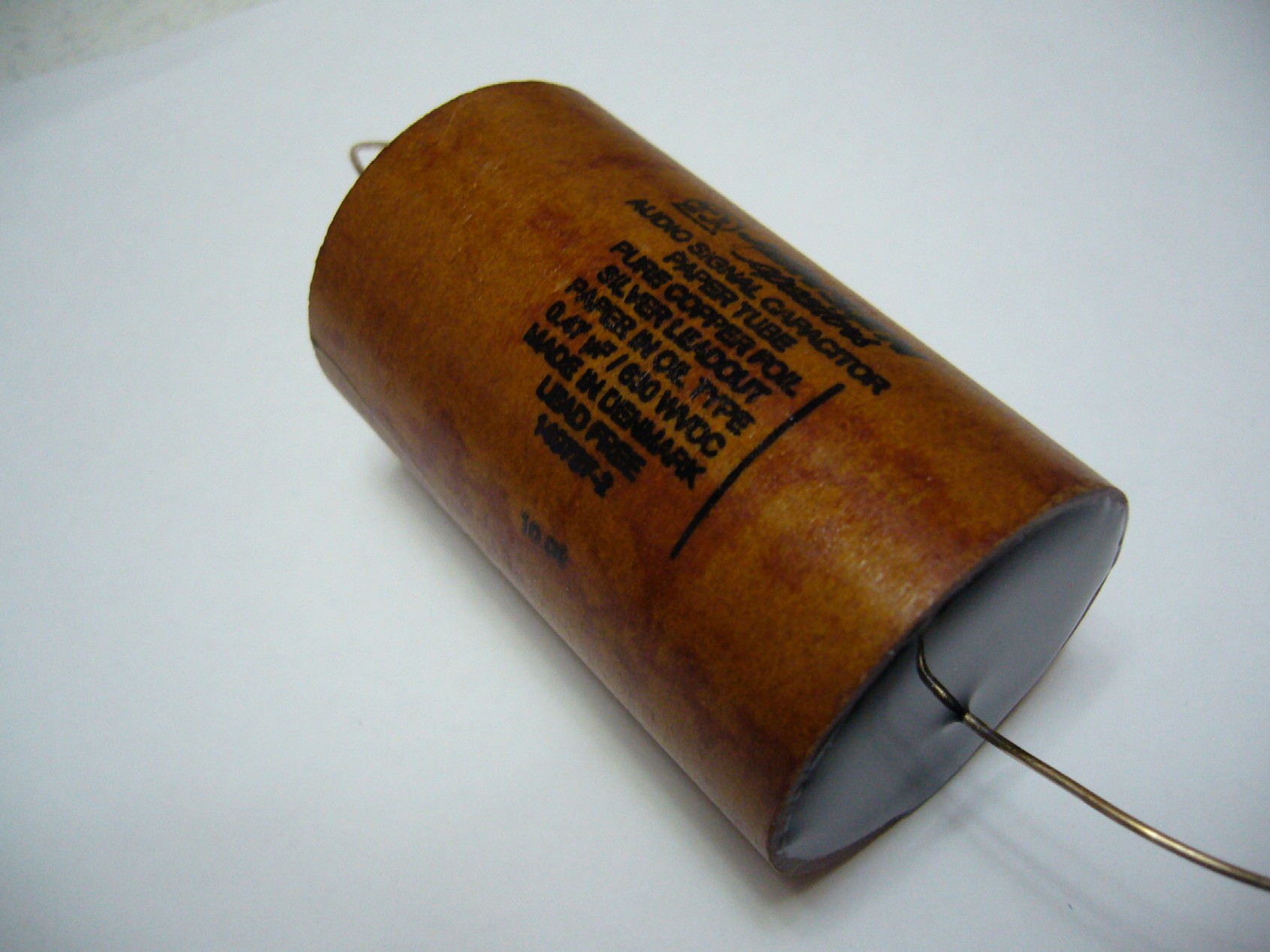

Copper-foil Paper in oil .Silver lead-out paper Tube

真空管アンプのカップリングコンデンサーにぜひお使いください。

最近購入されたT様のメールです。

 Jensen Copper Foil paper in oil  paper Tube(カップリングコンデンサーとして使用)

交換時は過度の刺激のない、何とも自然でクリアーな音です。

とにかく,音の余韻の出方が素敵です。

交換して週間経ったら音が全く変わりました。


セピア色の写真が現像時の鮮度を取り戻したような変わり方です。


モノラル時代の演奏、クレンペラー、セル、ゼルキン、ナット、ブッシュ、

シュワルツコップ、ディースカウ、

演奏時の音の艶や量感、演奏の熱気までも再現できています。


とにかく素晴らしいです。


Polarity - which way round do the go? Jensen paper in oil capacitors have an inner and outer foil, simply put the internal construction is like a roll of paper. So there is the start or inner or input - the inside of the roll, and a finish or outer or output - the outside of the roll. You can connect the capacitor either way round it won`t cause any problems, however it is preferable to connect the outer foil to the negative side. This is basically the part of the circuit that is nearest the earth potential. For Jensen capacitors the inner foil is marked by a line. See the diagram below. The reason for this preference is that the outer foil of the capacitor is the part that will see most interferences, so better to have this nearest the ground where unwanted noise can be earthed. Please note that some of the Jensen capacitors have an inner foil end that marked by red and an outer end marked by black.

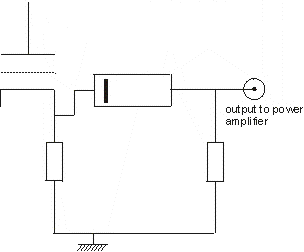

orientation of Jensen capacitors, the LINE faces the incoming signal
